Section 26.13 Circuit Analysis
Activity 26.13.1. Warmup Ranking.

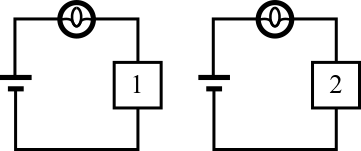

Suppose the left bulb in the circuit below is brighter.
Compare all of the following:
(a)
The current through the bulb.
(b)
The current through the battery.
(c)
The voltage across the bulb.
(d)
The resistance of the mystery box.
